SOT23 to DIP Adapter

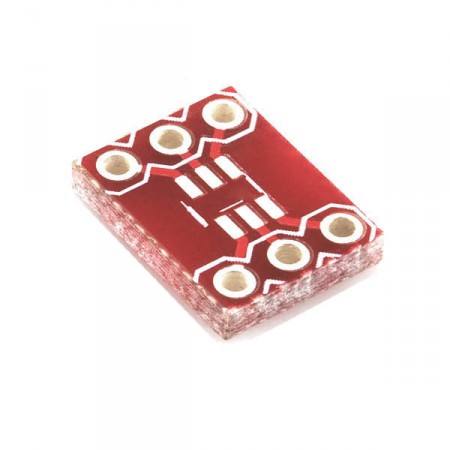

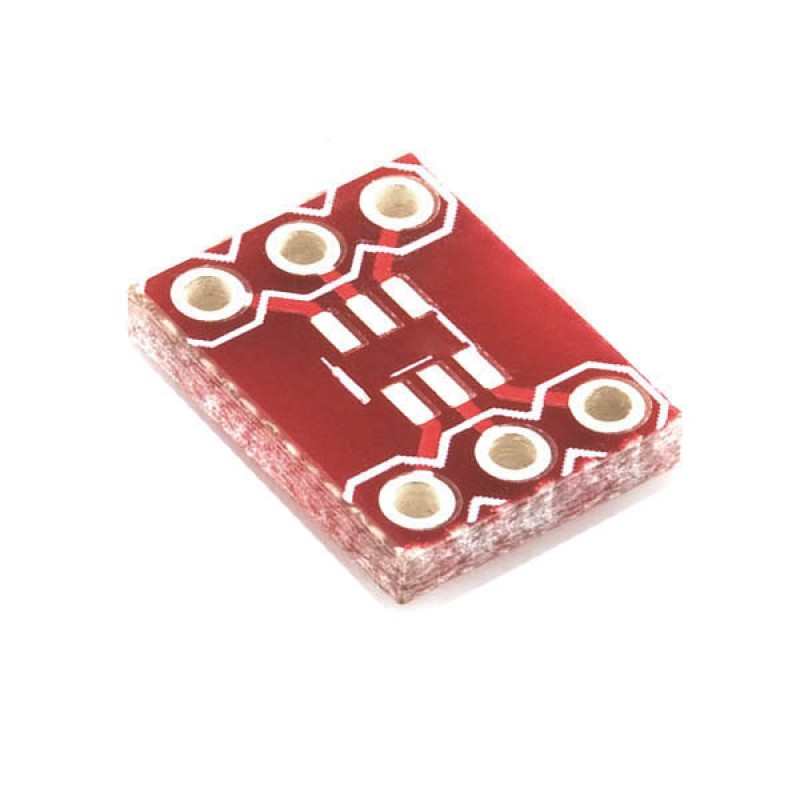

 6 pin SOT-23 to DIP adaptor. Created to take SOT23 of various pin sizes breakout to DIP. This will work with 3-pin MOSFETs, BJTs, Voltage Regulators (SOT-23-5), and various other Micro6, Micro5, etc packages.

DIP width is 0.300" (300mil) and will fit nicely into any breadboard or DIP socket. 40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SOT23 packages including:

• SOT-23
• SOT-23-3
• SOT-23-6
• Micro3
• 5-MicroSMD
• All other similar SOT23 packages

Dimensions: 0.34x0.46"

Documents:

• Schematic
• Eagle Files
• GitHub (Design Files)
